Steel Structure Chimney Tower

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Steel Structure Chimney Tower, Xuteng Iron Tower looks forward to cooperating with you.

【 Main function 】 The main fiberglass flue external support steel frame.

【 Product Features 】 Assisted support for fiberglass steel pipes, with small footprint, short production cycle, convenient installation, simple maintenance, and recyclability.

【 Main use 】 Used in petroleum, chemical and other units.

The structural form is mainly a four column angle steel structure.

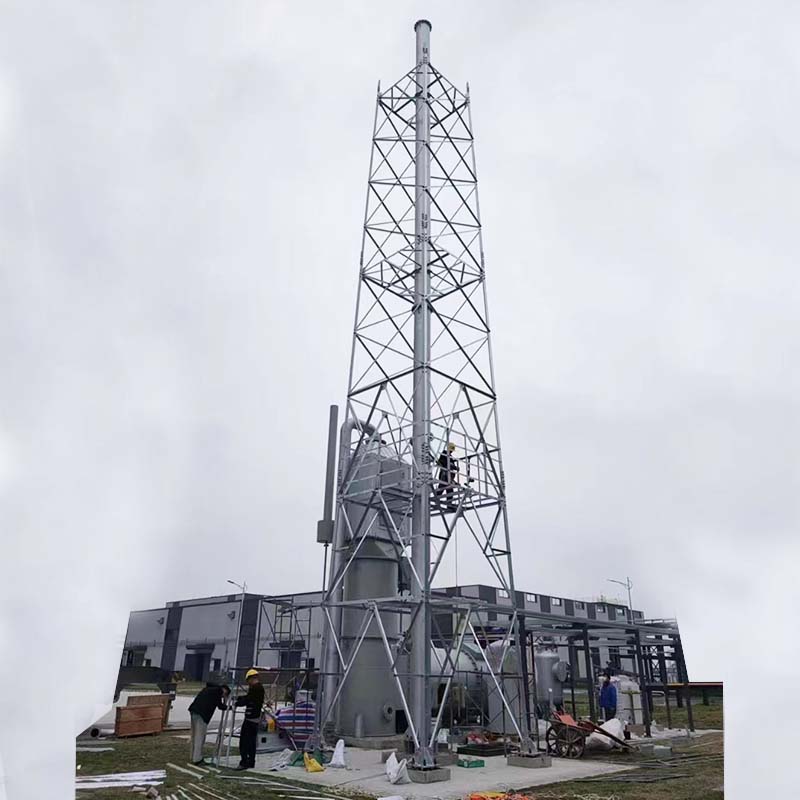

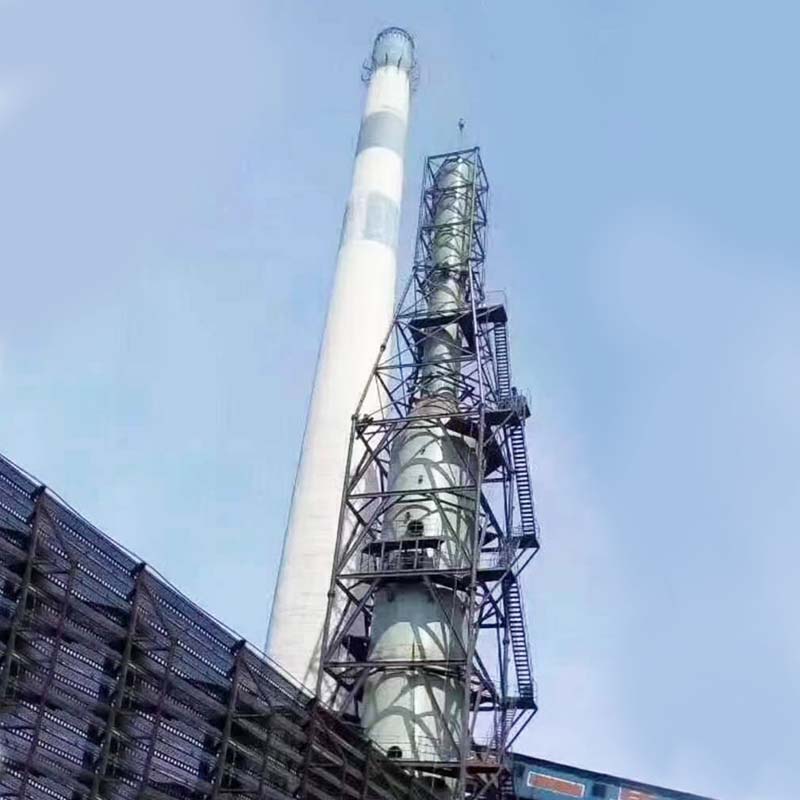

The chimney tower is composed of the main tower body, working platform, lightning rod, rotating staircase, bolts, connecting steel plate, and lightning lead. The angle steel is generally made of Q235B steel, all of which are hot-dip galvanized with anti-corrosion treatment. The connecting bolts are of grade 6.8, and the tower body is equipped with a ladder with a side width of 700mm. There is a working platform on one floor, and a lightning rod is installed on the top of the tower. The lightning protection grounding resistance is less than or equal to 10 ohms.
